Rated current: 80A/125A/150A/200A/250A
Rated voltage: 1000V
Insulation resistance: ≥100MΩ 1000V DC
Resistant voltage: 3000V AC / 1min

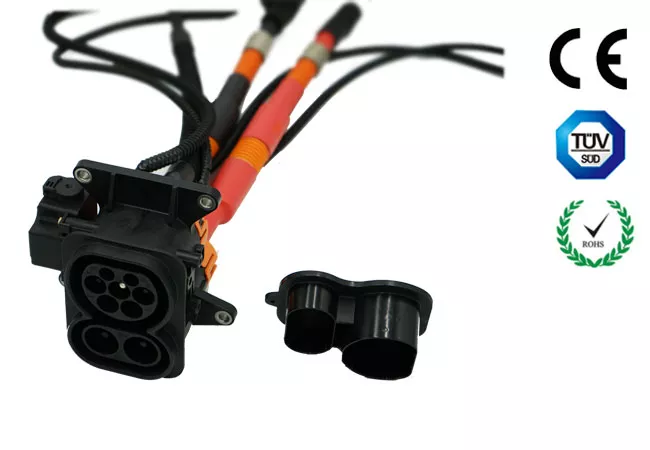

SCZ series CCS2 charging socket are installed on electric vehicles. By cooperating with DC charging guns, the DC charging function is realized. The products meet IEC 62196.3-2022 and RoHS requirements.
1. Comply with IEC 62196.3-2014
2. Rated voltage: 1000V
3. Rated current: 80A/125A/150A/200A/250A
4. Wire Diameter:16mm²/25mm²/35mm²/50mm²/70mm²/95mm²
5. AC 32A three-phase
6. 12V/24V electronic lock optional
7. Meet TUV/CE certification requirements
8. Anti-straight plug dust cover
9. 10000 times of plugging and unplugging cycles, stable temperature rise
Outline drawing of charging socket and low-voltage wiring
Figure 1 Outline drawing of charging socket
Figure 2 Outline Dimensions of the Socket
Temperature sensor in socket
Temperature sensor model: PT1000, the temperature sensor model can be adjusted according to customer needs
Suggested temperature control: when the temperature reaches 100°C, current limiting treatment is performed, and when the temperature reaches 120°C, charging is stopped.
Allowable working current: 0.3mA max
| Model | Example: SCZ-200A-1000V-EU |
| Rated current | DC: 80A/125A/150A/200A/250A AC: 32A three-phase |
| Wire Diameter | 16mm²/25mm²/35mm²/50mm²/70mm²/95mm² |
| Rated voltage | DC + \ DC- \ PE hole 1000V, the remaining 30V |
| Withstand voltage | 3000V AC / 1min. (DC + \ DC- \ PE) |
| Insulation resistance | ≥ 100mΩ 1000V DC (DC + / DC- / PE) |
| Mechanical life | 10,000 times |
| Ambient temperature | -30℃~50℃ |
| Degree of Protection | IP55(When not mated) IP44(After mated) |
| Contact parts | |
| Material | copper alloy |
| Surface treatment | silver plated |
| Insulation parts | |
| Material | thermoplastic |
| Colour | Black |
| Seals | |
| Material | silicone rubber |
| Color | red / gray / blue |
