Rated current: 1000V
Rated current: MAX 300A
Cross sections: 16mm² 25mm² 35mm² 50mm² 70mm²
Protection Grade: IP67 IP69K
Application: High-volatge connection between motor conntroller, all-in-one connector,motor, Pack battery, PDU, ect.

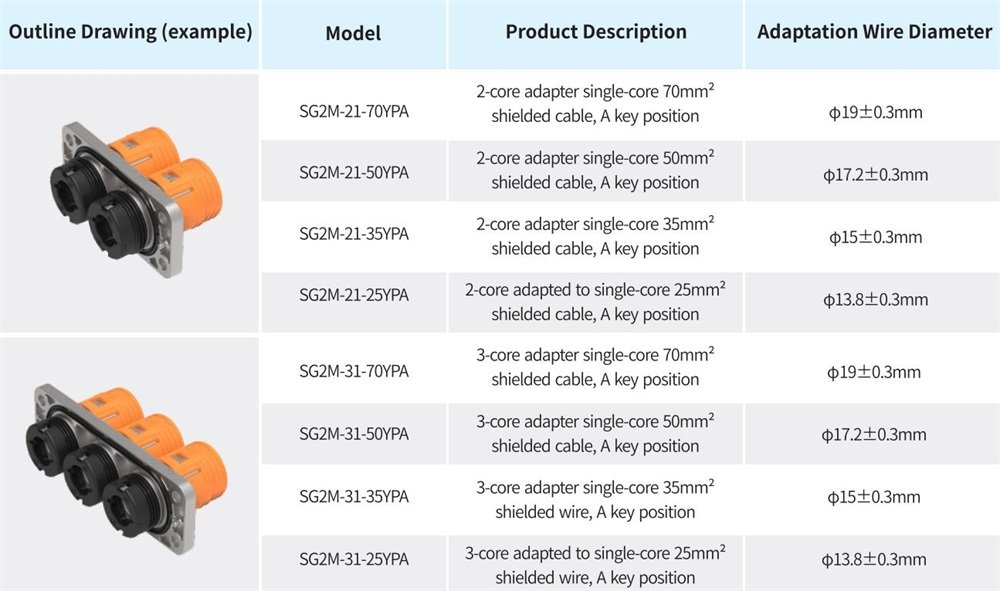

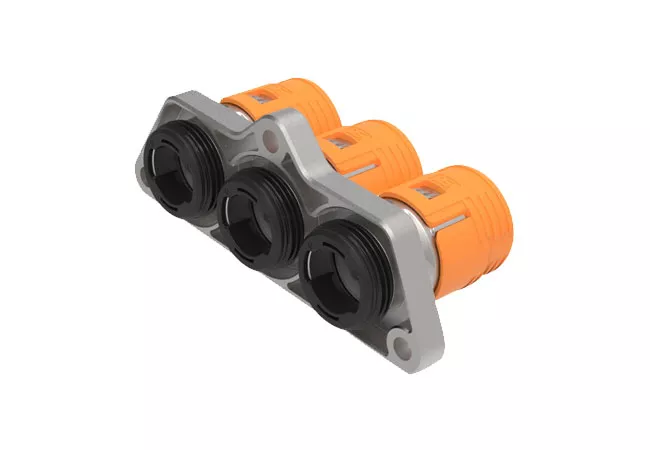

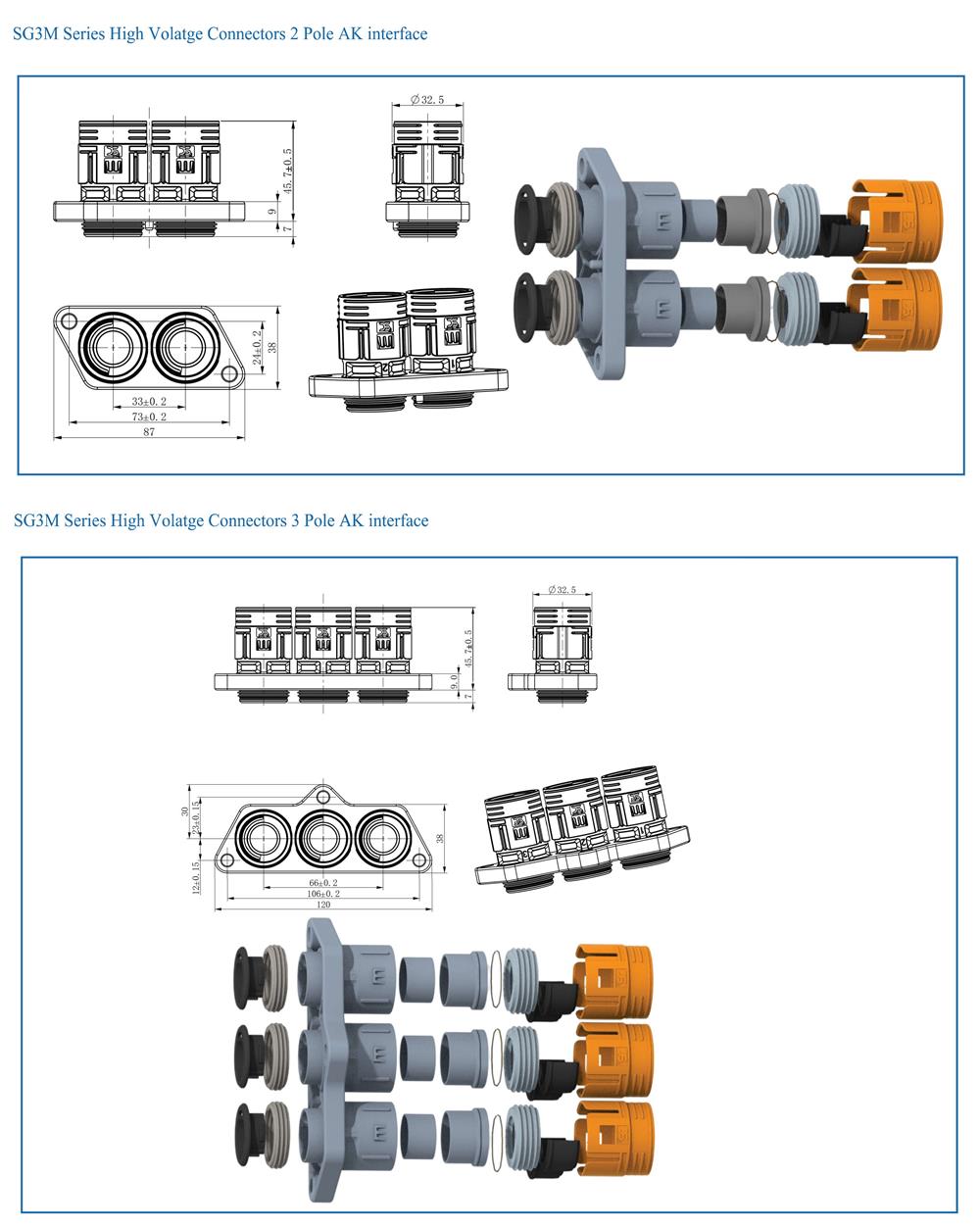

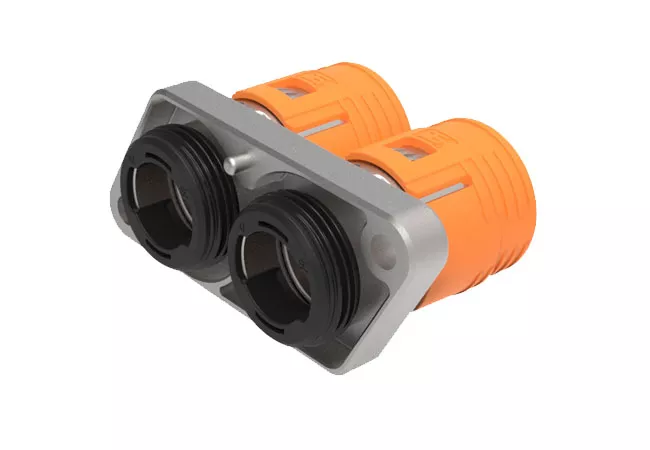

The Saichuan SG1M SG2M SG3M metal connector system can achieve 300A at up to 1000V. With their high mechanical strength ,excellent vibration and shielding, high efficiency when crimping , the SG1M SG2M SG3M connectors are well-suited to typical high volatge EV applications such as the connection between motor, inverter,PDU and battery. The range includes 1-, 2-, 3-pole connectors which for maximum flexibility can be used copper or aluminum cables in SEVEN different cable cross sections.
| Description | Item No. | SG3M-21-70YP |
| Electrical Performance | Rated voltage | 1000V |
| Withstand voltage | 4000V | |
| Rated current | MAX 300A | |
| Insulation resistance | 5000MΩ | |
| Mechanical Properties | Pins | 2pins 3pins |
| Mating cycles | >100Times | |
| Cross sections | 16mm² 25mm² 35mm² 50mm² 70mm² | |
| Vibration class acc. To | QC/T 1067.1-2017 V3 | |
| Raw Material | Shell | Aluminum alloy |
| Shielding | Copper alloy | |
| Insulator | PA66 | |
| Sealing | Rubber material | |
| Environmental Performance | Operating temperature | -40℃~140℃ |
| Protection Grade | IP68 IP69K | |
| Salt Spray | 96h |
