Rated current: 1000V
Rated current: MAX 20A
Cross sections: 2.5mm²
Protection Grade: IP67 IP69K
Application: High-volatge connection between motor conntroller, all-in-one connector,motor, Pack battery, PDU, ect.

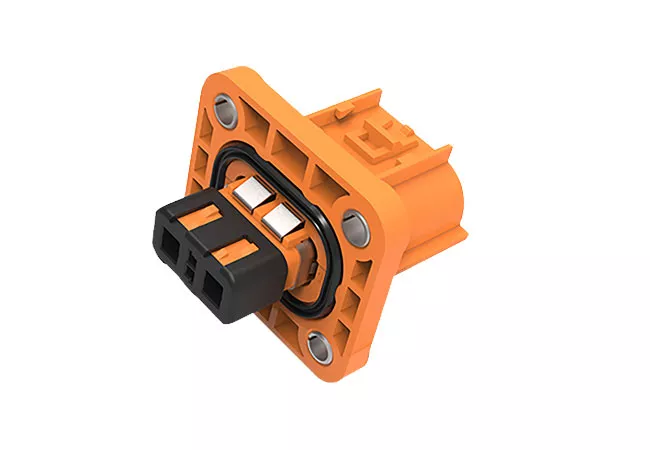

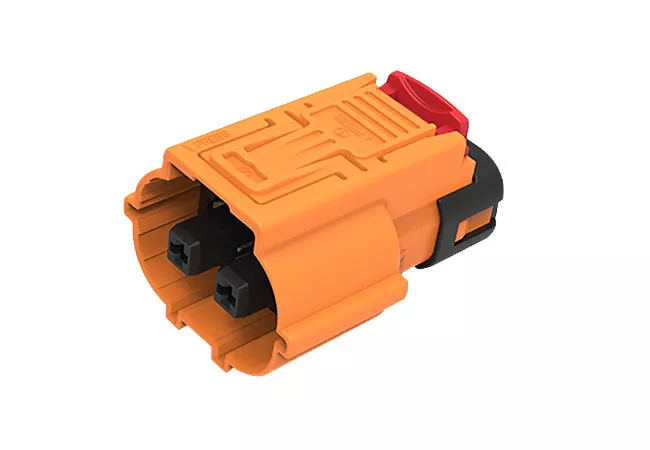

The Saichuan SH1 connector system can achieve 20A at up to 1000V. With a variety of key positions for installation indentification and insert recognition, 360° shielding, IP67 IP69K IPXXB protection rating, use straight push-pull shrapnel locking structure, with secondary locking function and PTA to prevent accidental disconnection caused by incorrect operation. Shell made by plastic, which is light weight and more security in using. Orange color act as warming

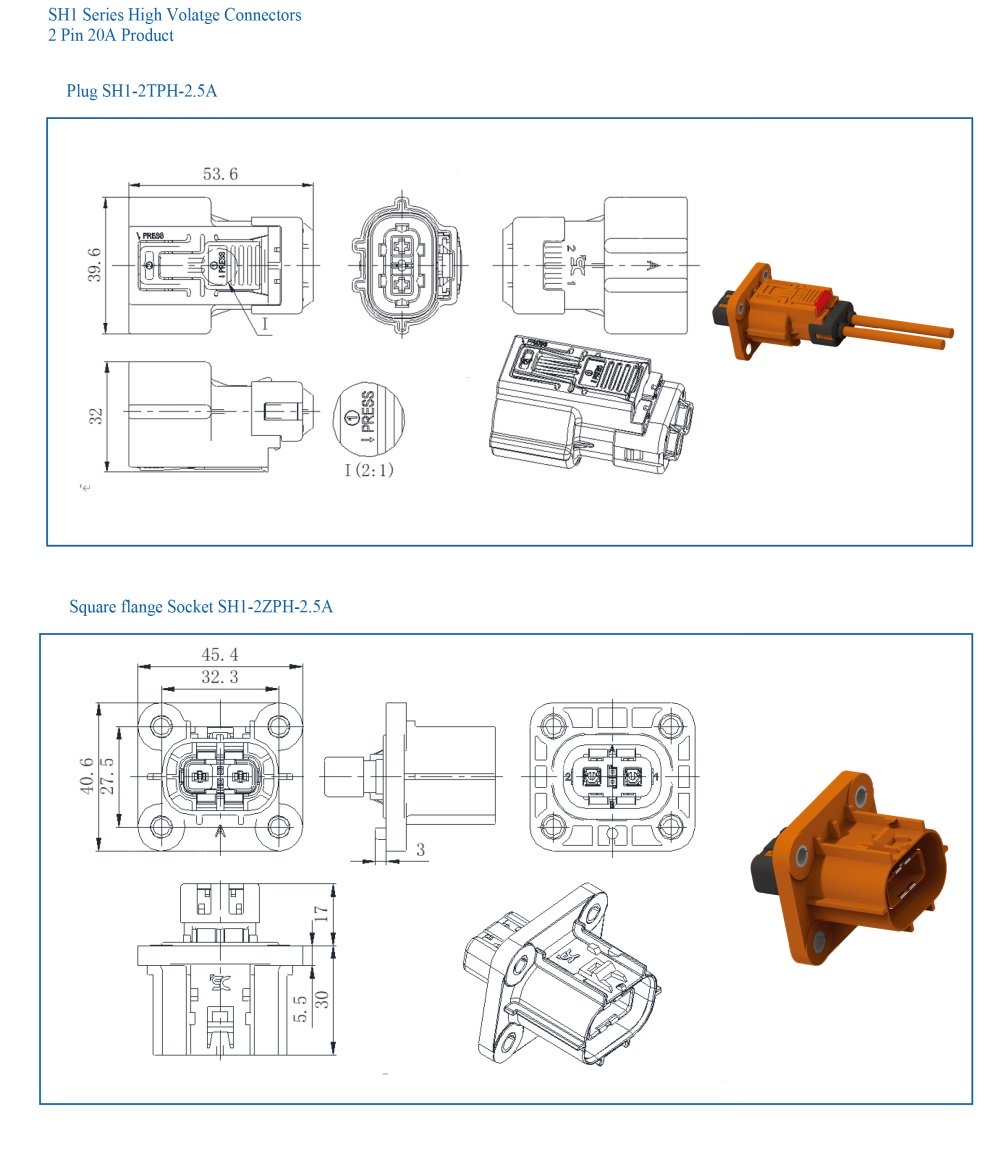

| Description | Item No. | SH1-2TPH-2.5A |
| Electrical Performance | Rated voltage | 1000V |
| Withstand voltage | 4000V | |
| Rated current | 20A | |
| Insulation resistance | 5000MΩ | |
| Mechanical Properties | Pins | 2 pinS |
| Mating cycles | >100Times | |
| Cross sections | 2x2.5mm² | |
| Vibration class acc. To | QC/T 1067.1-2017 V2 | |
| Raw Material | Shell | PA66 |
| Shielding | Copper alloy | |
| Insulator | PA66 | |
| Sealing | Rubber material | |
| Environmental Performance | Operating temperature | -40℃~140℃ |
| Protection Grade | IP68 IP69K | |
| Salt Spray | 504h |
