Rated current: 80A / 125A / 200A / 250A
Rated voltage: 750V / 1000V DC
Working temperature: -30℃～+105℃
Cable length: 5m ±45mm (customizable)

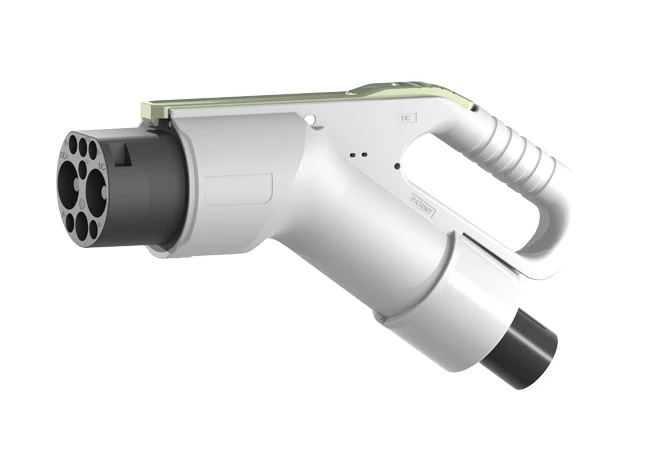

Saichuan GB/T DC charging plug, with 5m charging cable, cable length can be customized. Can quickly charge electric vehicles (EV) with direct current (DC) through the GB/T charging socket, for installation in electric vehicle charging stations ( EVSE).
The current specification is 80A / 125A / 200A / 250A, and there are two colors of black and white.
1. This product complies with GB/T 20234.1 , GB/T 20234.3;
2. The shell adopts an integrated structure, which improves the protection level and saves product parts, making the product assembly simple;
3. The electronic lock is driven by a motor, which greatly increases the life and retention of the product, and uses modular components to facilitate maintenance;
4. The air-permeable membrane structure is added, which can regulate the air pressure and temperature in the gun body;
5. The appearance and shape follow ergonomics and feel comfortable.
80A DC Charging Cable
2×20mm²
125A DC Charging Cable
2×35mm²
200A DC Charging Cable
2×50mm²
2×70mm²
250A DC Charging Cable
2×80mm²
2×70mm²
| Product type | GB/T DC charging cable |
| Rated current | 80A / 125A / 200A / 250A |
| Rated voltage | 750V / 1000V DC |
| Withstand voltage | 4500V DC, leakage current＜5mA |
| Insulation resistance | 500MΩ, measured with 1000V DC voltage |
| Contact resistance | ≤3mΩ |
| Working frequency | 50Hz |
| Cable length | 5 m ±45 mm (customizable) |
| Mechanical performance | |
| Insertion/extraction life | > 10000 times |
| Insertion force | < 140 N |
| Pull-out force | < 140 N |
| Environmental performance | |
| Protection level | IP55 (mated) |
| Ambient temperature | -30℃~50℃ |
| Working temperature | -30℃～+105℃ |
