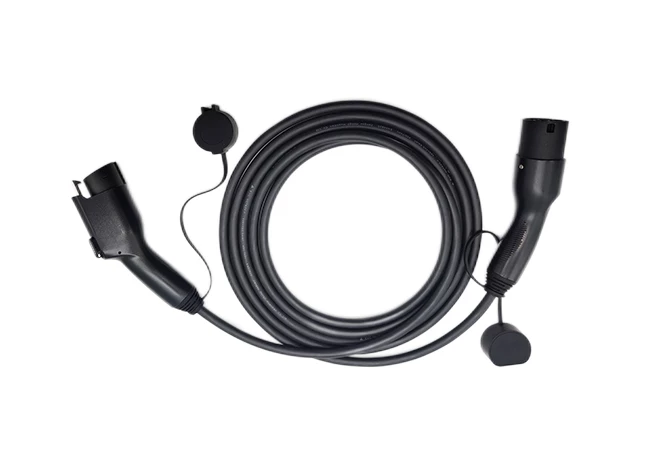

Mobile AC charging cable with Vehicle Connector and Infrastructure plug for charging electric vehicles (EV) with alternating current (AC), via type 1 Vehicle Inlets, compatible with type 1 Infrastructure Socket Outlets at charging stations for E-Mobility (EVSE).
Type 1 to Type 2 EV Charging Cable Features
Safety Assurance
Already passed all tests of TUV and CE. There are all kinds of protective measures to ensure the safety of every user.
High quality cables
Teison TPU cables make the charging gun itself smaller in size and easier to charge.
Quick and Easy Operation
Simply connect the plug with the EV's inlet, and then the charger will automatically detect the connection status and handshaking protocol to starts charging.
Intelligent Chip
Automatically repairing minor charging problems while charging.
| Technical Specification | |
| Mechnical life | no-load plug in/out >10000 times |
| Coupled insertion force | 45N<F<80N |
| Impact of internal force | afford 1m drop and 2T vehicle run over pressure |
| Rated current | 16A/32A |
| Operation voltage | 250V |
| Insulation resistance | >1000MΩ (DC500V) |
| Terminal temperature rise | <50K |
| Withstand voltage | 2000V |
| Contact resistance | 0.5mΩ max |
| Operating temperature | -30℃~50℃ |
| Protection Degree | IP54 (Protective cap); IP44 (plugged in) |
| Shell | Thermoplastic, flame retardant grade UL94 V-0 |
| Terminal | Copper alloy, silver plated |
| Model | Plug Standard | Current | Phase | Power |
| SC-EVC-001 | Type2 To Type2 | 16A | 1 Phase | 3.6KW |
| SC-EVC-002 | Type2 To Type2 | 16A | 3 Phase | 11KW |
| SC-EVC-003 | Type2 To Type2 | 32A | 1 Phase | 7.2KW |
| SC-EVC-004 | Type2 To Type2 | 32A | 3 Phase | 22KW |
| SC-EVC-005 | Type1 To Type2 | 16A | 1 Phase | 3.6KW |
| SC-EVC-006 | Type1 To Type2 | 32A | 1 Phase | 7.2KW |
| Rated Current | Cable Specifification | Shell and cable |
| 16A Single Phase | 3x2.5mm²+2x0.5mm² | Shell color: black white optional Cable color: black orange optional |
| 16A Three Phase | 5x2.5mm²+2x0.5mm² | |
| 32A Single Phase | 3x6mm²+2x0.5mm² | |
| 32A Three Phase | 5x6mm²+2x0.5mm² |
