Mobile AC charging cable with Vehicle Connector and Infrastructure plug for charging electric vehicles (EV) with alternating current (AC), via type 1 Vehicle Inlets, compatible with type 1 Infrastructure Socket Outlets at charging stations for E-Mobility (EVSE).

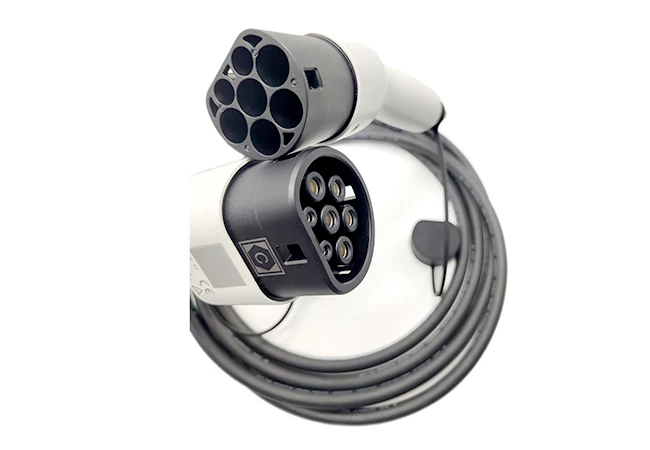

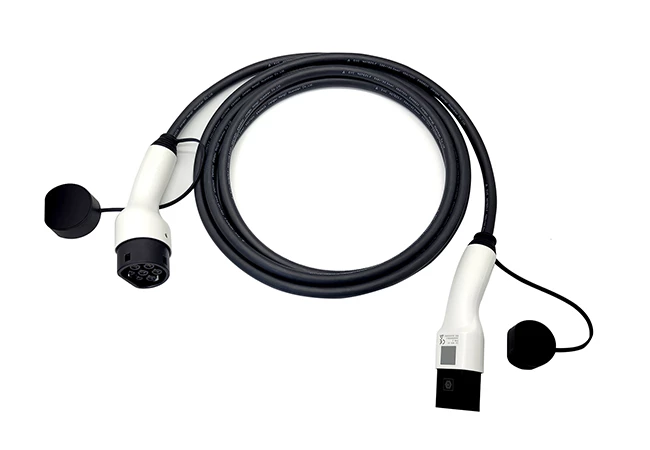

IEC62196-2 type2 to type2 ev charging cable connectors
3.6kw, 7.2kw ,11kw, 22kw with 5m black white cable, or customized, meet IEC 62196-2 standard
Higher safety level, support outdoor using
Authoritatively certificated from CE, CCC, ROHS and so on
1-year warranty for after-sale service
Customized service on LOGO, length, color and inner box
EV products are all designed by experts in electric vehicles and customer has any ideas or comments about products, show us your creativity and we have professional charger designer to assist you to complete.
Always making any samples to meet customers’ requirements. we can produce by your samples or technical drawings and can build the molds and fixtures.
Our normal cables are available from 5m to 50m in length. And certainly the color and length of cable and the logo of charger we also can make customized.
Supplying you with high quality yet price friendly products is the sales concept of our company.
24 hours online. If any inquiry you have, please feel free to contact us any time. And we have professional quotation team, and build a quotation system.
Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
|Mechnical life||no-load plug in/out >10000 times|
|Coupled insertion force||45N<F<100N|
|Impact of internal force||afford 1m drop and 2T vehicle run over pressure|
|Insulation resistance||>1000MΩ (DC500V)|
|Terminal temperature rise||<50K|
|Contact resistance||0.5mΩ max|
|Protection Degree||IP54 (Protective cap); IP44 (plugged in)|
|Shell||Thermoplastic, flame retardant grade UL94 V-0|
|Terminal||Copper alloy, silver plated|
|SC-EVC-001||Type2 To Type2||16A||1 Phase||3.6KW|
|SC-EVC-002||Type2 To Type2||16A||3 Phase||11KW|
|SC-EVC-003||Type2 To Type2||32A||1 Phase||7.2KW|
|SC-EVC-004||Type2 To Type2||32A||3 Phase||22KW|
|Rated Current||Cable Specifification||Shell and cable|
|16A Single Phase||3x2.5mm²+2x0.5mm²||Shell color: black white optional|
Cable color: black orange optional
|16A Three Phase||5x2.5mm²+2x0.5mm²|
|32A Single Phase||3x6mm²+2x0.5mm²|
|32A Three Phase||5x6mm²+2x0.5mm²|
