Rated current: 80A/125A/150A/200A/250A/300A/400A
Rated voltage: 1000V
Insulation resistance: ≥100MΩ 1000V DC
Resistant voltage: 3000V AC / 1min

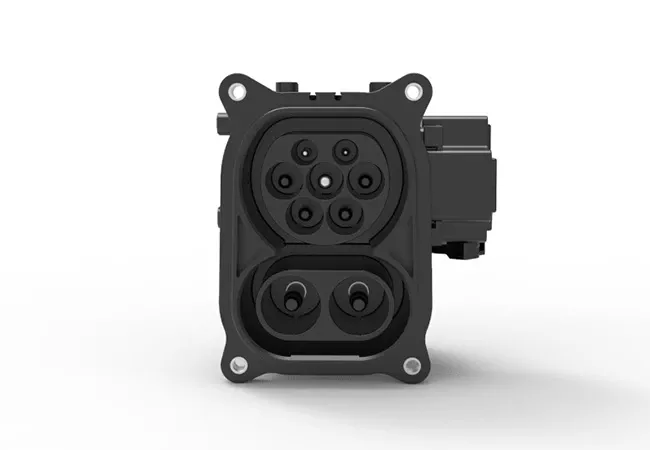

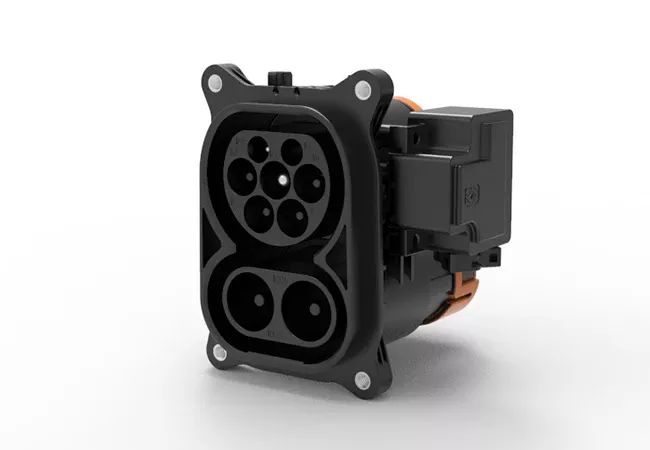

SCZ series CCS 2 socket are installed on electric vehicles, CCS type 2 inlet. By cooperating with CCS2 charging cable, the DC charging function is realized. The products meet IEC 62196.3-2022 and RoHS requirements.
1. Comply with IEC 62196.3-2022
2. Rated voltage: 1000V
3. Rated current: 80A/125A/150A/200A/250A/300A/400A
4. Wire Diameter:16mm²/35mm²/50mm²/70mm²/95mm²/120mm²
5. AC 32A three-phase
6. 12V/24V electronic lock optional
7. Meet TUV/CE certification requirements
8. Anti-straight plug dust cover
9. 10000 times of plugging and unplugging cycles, stable temperature rise
Type A adopts the front mounting method, and the opening size of the installation panel is as follows:
Type B adopts the rear mounting method, and the opening size of the installation panel is as follows:
Temperature sensor in socket
Temperature sensor model: PT1000, the temperature sensor model can be adjusted according to customer needs
Suggested temperature control: when the temperature reaches 100°C, current limiting treatment is performed, and when the temperature reaches 120°C, charging is stopped.
Allowable working current: 0.3mA max
| Model | Example: SCZ-200A-1000V-EU |
| Rated current | DC+/DC-：80A,125A,150A,200A,250A,300A,400A； L1/L2/L3/N：32A； PP/CP：2A |
| Wire Diameter | 80A/16mm2 125A/35mm2 150A/50mm2 200A/70mm2 250A/95mm2 300A/95mm2 400A/120mm |
| Rated voltage | DC+/DC-: 1000V DC; L1/L2/L3/N: 480V AC; PP/CP: 30V DC |
| Withstand voltage | 3000V AC / 1min. (DC + \ DC- \ PE) |
| Insulation resistance | ≥ 100mΩ 1000V DC (DC + / DC- / PE) |
| Electronic locks | 12V / 24V optional |
| Mechanical life | 10,000 times |
| Ambient temperature | -30℃~50℃ |
| Degree of Protection | IP55(When not mated) IP44(After mated) |
| Main material | |
| Shell | PA |
| Insulation part | PA |
| Sealing part | Silicone Rubber |
| Contact part | Copper alloy |
