Rated current: 1500V
Rated current: MAX 400A
Operating temperature: -40℃ ~ 125℃
Protection Grade: plug IP67(option) IP69K socket IP67

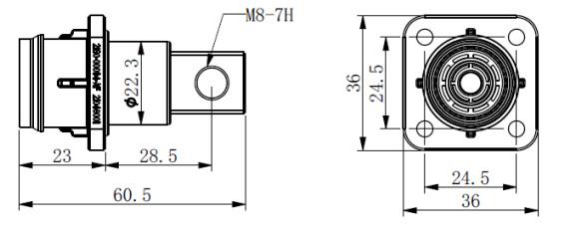

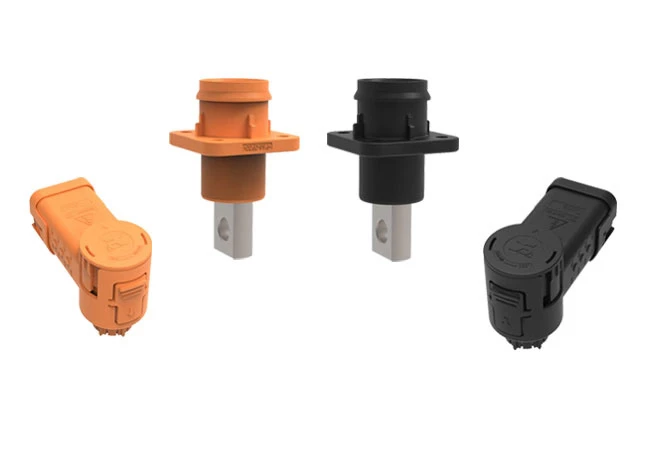

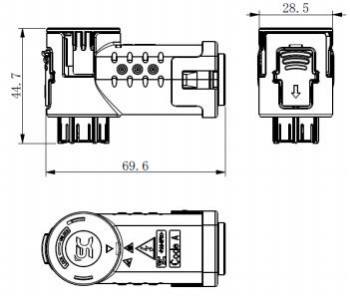

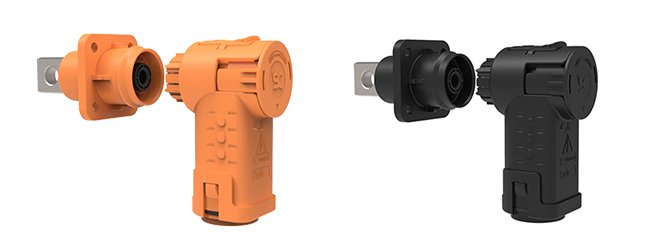

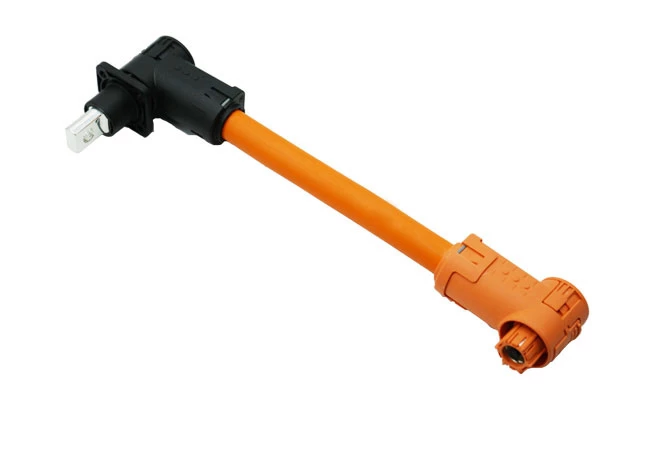

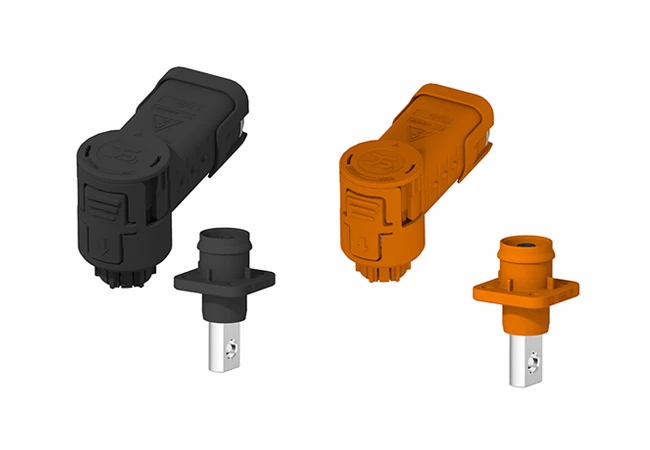

SS1 12mm energy storage connector, mainly including 250A, 300A, 350A/400A series. It has functions such as key position error prevention, positive and negative color error prevention, 360° rotation, etc., corresponding to high-voltage cables of 70mm², 95mm² and 120mm².
It is suitable for high-voltage connection between energy storage cabinets, energy storage stations, mobile energy storage vehicles, photovoltaic power stations and other components.
1. Supports crimping and then threading, and the wire harness production efficiency is high
2. The socket is individually sealed to IP67 (optional), and the plug and socket can meet IP67 (optional) after mating
3. The separation state of the head seat meets IPXXB
4. With key position error proofing, color error proofing function
5. Can be inserted at any angle of 360°, and can be rotated 360° after insertion
6. With secondary locking function
7. Can realize blind insertion
| Mechanical behavior | |
| Mechanical life | 100 times |
| Vibration level | QC/T 1067.1-2017 V1 vibration level |
| Electrical performance | |
| Rated current | 400A max |
| Rated voltage | 1500V |
| Withstand voltage | 4000V |
| Insulation resistance | 5000MΩ(drying) / ≥300MΩ(RH 95%) |
| Environmental resistance | |
| Protection class | IP67 (optional), IP69K, Sockets are individually sealed(optional) |
| Operating temperature | -40℃ ~ 125℃ |
| Salt spray level | Neutral salt spray 48h(non-hermetic);Neutral salt spray 480h(hermetic) |
| Main material | |
| Shell material | Nylon |
| Sealing parts | Silicone Rubber |
| Contact parts | Silver plated copper |
Order model
| Equipment | Item number | Rated current | Temperature rise | Adapter wire diameter |
| waterproof socket-A | 21G0-00094-AF | shared | shared | single seat seal |
| waterproof socket-B | 21G0-00094-BF | shared | shared | single seat seal |
| socket-A | 21G0-00094-A | shared | shared | single seat seal |
| socket-B | 21G0-00094-B | shared | shared | single seat seal |
| 95 square waterproof elbow plug-A | 21G0-00092-AF | 300A | 45K | 16.7±0.3mm |
| 95 square waterproof elbow plug-B | 21G0-00092-BF | 300A | 45K | 16.7±0.3mm |
| 95 square angled plug-A | 21G0-00092-A | 300A | 45K | 16.7±0.3mm |
| 95 square angled plug-B | 21G0-00092-B | 300A | 45K | 16.7±0.3mm |
| 70 square waterproof elbow plug-A | 21G0-00093-AF | 250A | 45K | 14.5±0.3mm |
| 70 square waterproof elbow plug-B | 21G0-00093-BF | 250A | 45K | 14.5±0.3mm |
| 70 square angled plug-A | 21G0-00093-A | 250A | 45K | 14.5±0.3mm |
| 70 square angled plug-B | 21G0-00093-B | 250A | 45K | 14.5±0.3mm |
| 120 square waterproof elbow plug-A | 21G0-00106-AF | 350A/400A | 45K/50K | 19±0.3mm |
| 120 square waterproof elbow plug-B | 21G0-00106-BF | 350A/400A | 45K/50K | 19±0.3mm |
| 120 square elbow plug-A | 21G0-00106-A | 350A/400A | 45K/50K | 19±0.3mm |
| 120 square elbow plug-B | 21G0-00106-B | 350A/400A | 45K/50K | 19±0.3mm |
