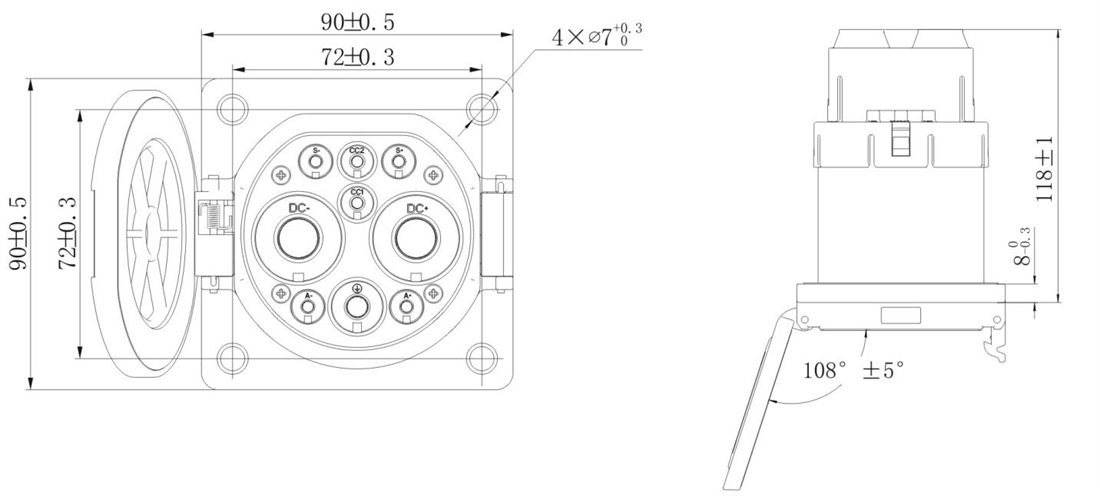

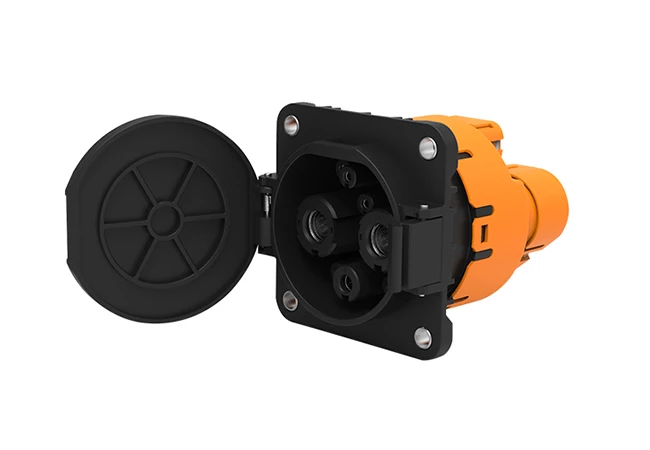

Rated voltage: 750V/1000V
Rated current: max 400A
Termination method: crimp
Protection level: IP54 when the cover is buckled, IP55 after inserting the gun
The product meets the requirements of GB/T 20234.3-2015, and has the advantages of replaceable power jack, low charging temperature rise, and high assembly efficiency.
When the power jack is damaged, it can be quickly replaced and maintained;
During the wiring process of the charging socket, the temperature sensor and the socket can be crimped first and then assembled, which can realize modular material preparation and high production efficiency.
Products comply with RoHS requirements

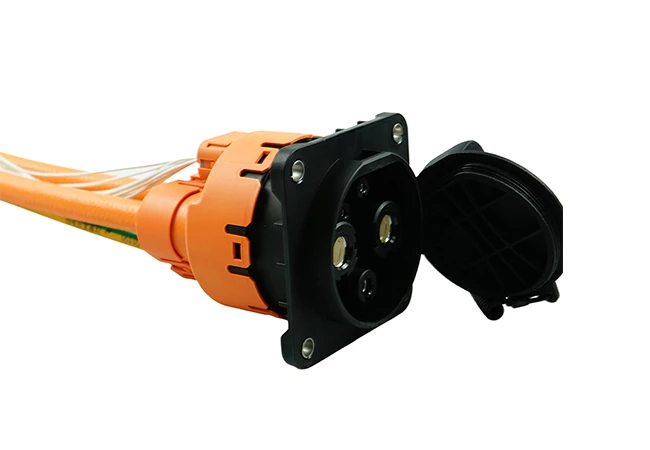

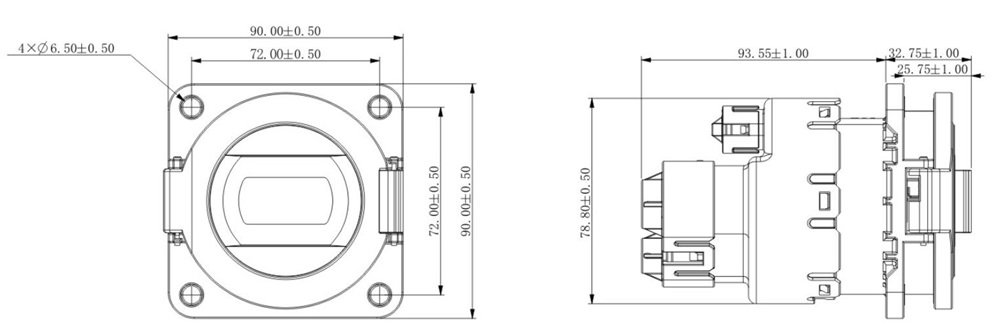

SCZ series DC non-quick-change charging sockets meet the requirements of GB/T 20234.3-2015.
PCBA integrated design, safe and reliable performance; low-voltage lines and high-voltage lines are assembled separately, so that low-voltage lines can be crimped first and then assembled.
The product is RoHS compliant.
| Model | Quick change socket | Non-quick change socket |
| Life of plugging and unplugging | 10000 times | |
| Rated current | 125A/200A/250A/300A/400A | 80A/125A/200A/250A |
| Applicable wire diameter | 35mm²/50mm²/70mm²/95mm²/120mm² | 25mm²/35mm²/50mm²/70mm² |
| Wiring method | crimp | |
| Rated voltage | 750V/1000V | |
| Withstand voltage | 3000V | |
| Insulation resistance | 5000MΩ | |
| Ambient temperature | -30℃~50℃ | |
| Protection class | After the cover is buckled, IP54, after the gun is inserted, IP55 | |
| Salt spray level | 96h | |
| Flange | Aluminum alloy | |
| Rubber parts | Silicone Rubber | |
| Injection parts | PA6+30% glass fiber | |
