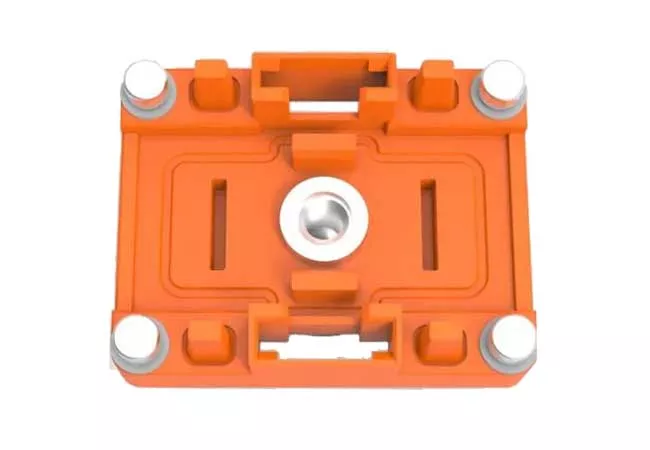

SS2 Series HV Connector for Energy Storage System
SS2 Series HV Connector for Energy Storage System
SS2 Series HV Connector for Energy Storage System
SS2 Series HV Connector for Energy Storage System
SS2 Series HV Connector for Energy Storage System
SS2 Series HV Connector for Energy Storage System

SS2 Series HV Connector for Energy Storage System

Introduction:
Realize the installation of two-way copper bars to avoid unnecessary exchange and re-installation of the base direction; Maximum current 300A, Adapter wire diameter 22.5±0.3mm
Key Features:

Operating Voltage 1500V DC max
Working current 300A max
Operating temperature -40℃~+125℃

Features

Development background of copper bar connectors:

With the development of the energy storage industry, the market demand for liquid-cooled energy storage technology solutions has gradually increased, and at the same time, higher technical requirements have been put forward for the waterproof performance of connectors for energy storage systems. Developed copper bar connectors with higher waterproof performance, which solved customer pain points.

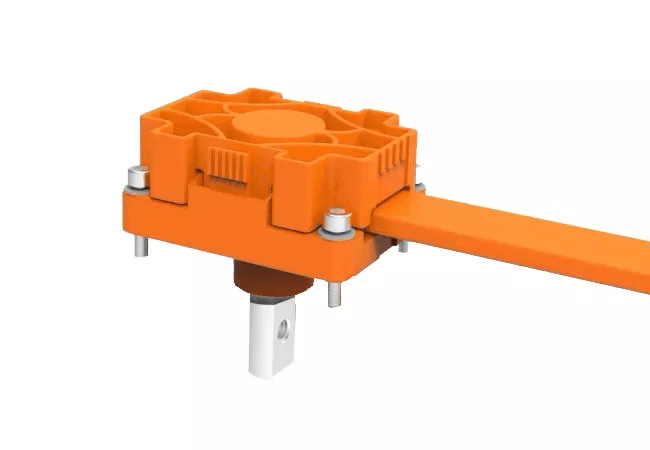

SS2 series copper bar connectors for energy storage systems:

1. It has a single-seat seal of IP65 or above, and an assembled state of seal of IP65 or above;

2. Provide non-waterproof version, strong optionality;

3. Realize the installation of two-way copper bars to avoid unnecessary exchange and re-installation of the base direction;

4. Easy to operate, fast installation can be achieved by crimping the upper cover; at the same time, easy and fast disassembly can be realized, which is convenient for maintenance;

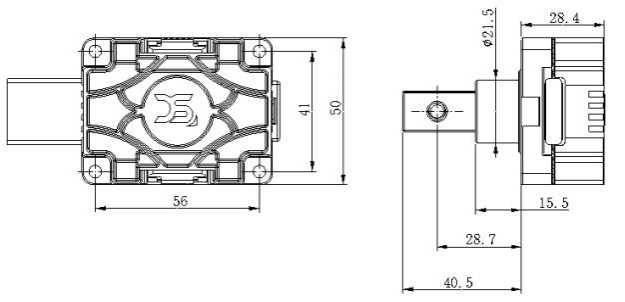

Dimensions of Copper bar connector:

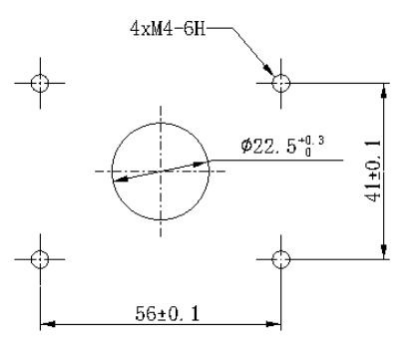

Recommended Mounting Panel Cutout Dimensions: Recommended Fastening Bolts: M4*20


Parameters
Application Environment
Operating Voltage1500V DC max
Working current300A  max
Operating temperature-40℃~+125℃
Mechanical behavior
Mechanical lifeAt least 20 times (non-violent disassembly)
Termination methodBolted
Electrical properties
Insulation resistance500 MΩ  min  (At room temperature 25°C)
Withstand voltage3000V AC
Environmental performance
temperature rise<45K
Protection classIP65
Salt spray level48h neutral salt spray (exposed part after assembly)
Main material
copper pillarcopper
shell materialnylon
Sealing partsSilicone Rubber
Environmental information
RoHS ratingsatisfy

Order model

EquipmentItem numberRated currenttemperature riseCompatible with copper bars
Copper row waterproof-A21G0-00122-1CAF300A45Kcustom made
Copper row waterproof-B21G0-00122-1HAF300A45Kcustom made
Copper row waterproof-A21G0-00121-1CAF300A45Kcustom made
Copper row waterproof-B21G0-00121-1HAF300A45Kcustom made
