Saichuan has a range of high voltage cables for electric vehicles, available in 2.5mm²~120mm² shielded, unshielded or multi-core configurations. Our ev high voltage cables meet all automotive high voltage cable requirements with excellence. Our high-voltage (HV) cables have been tested for reliability in real vehicles on more than 600,000 km of roads.

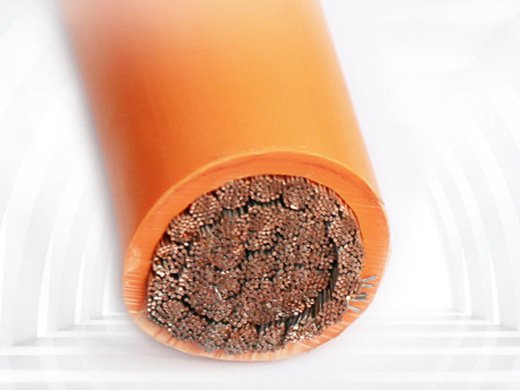

Construction

Conductor：Bare Copper/Tinned Copper

Insulation/Sheath：XLPE/XLPO (orange)

Product Features

Rated Temperature：-40℃~125℃/150℃;

Rated Voltage：AC/DC:600/900v,1000/1500V ;

Flame Test：Flames extinguished at 70s,Keep unburned at least 50mm;

Withstand Voltage：1.0kV/30min. Rise to 5.0kV/5min. ( 600/900v) , 1.0kV/30min. Rise to 5.0kV/5min. Continue Rise to 8.0kV ( 1000/1500V ) ;

Oil Resistance：IRM902,IRM903,Gasoline for 20h in each, Variation of OD≤15%,No cracks;

Anti-tear Performance：>20N/mm;

Minimum bending radius：5D(OD≤20mm),6D(OD >20mm);

Environmental Requirements：RoHS & REACH;

Reference Standard：ISO6722、QC/T 1037、ISO19642、LV216、DEKRA-179;

Cable usage environment

The warehouse where the cables are stored shall not have harmful gases that damage the insulation/sheath and corrode metals. It is strictly forbidden to contact with acids, alkalis and mineral oils during normal use, and avoid exposure in the open air or in the exposed environment, and the temperature conditions that do not meet the wire and cable standards. use below;

Remarks: The above product specifications, dimensions and structures may be changed due to technological progress. Similar specifications can be designed and manufactured according to customer needs.
