Introduction:
Unshielded high voltage copper cables for hybrid and pure electric vehicles. Temperature class +200℃, silicone rubber insulation
Key Features:

● Conductor:Copper

● Insulation:Silicone Rubber

● Rated temperature: -40~175/200℃

● Wire Diameter: 2.5~120mm²

Features

Saichuan has a range of high voltage cables for electric vehicles, available in 2.5mm²~120mm² shielded, unshielded or multi-core configurations. Our ev high voltage cables meet all automotive high voltage cable requirements with excellence. Our high-voltage (HV) cables have been tested for reliability in real vehicles on more than 600,000 km of roads.

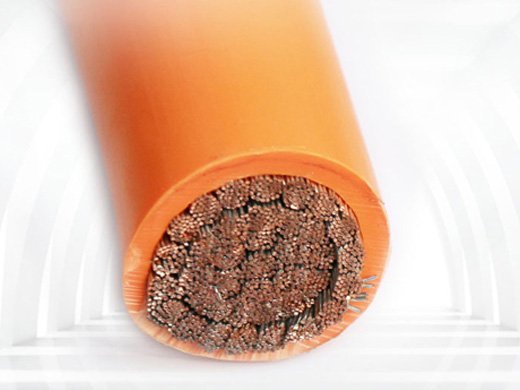

Construction

Conductor:Bare Copper/Tinned Copper

Insulation/Sheath:Silicone Rubber (Orange)



Product Features

Rated Temperature:-40℃~175℃/200℃;

Rated Voltage:AC/DC:600/900v,1000/1500V ;

Short-term Aging:240h,Comply with QC/T 1037;

Long-term Aging: 3000h,Comply with QC/T 1037;

Flame Test:Flames extinguished at 70s,Keep unburned at least 50mm;

Withstand Voltage:1.0kV/30min. Rise to 5.0kV/5min. ( 600/900v) 1.OkV/30min. Rise to 5.0kV/5min. Continue Rise to 8.0kV(1000/1500v) ;

Oil Resistance:IRM902,IRM903,Gasoline for 20h ineach, Variation of OD≤15%, No cracks;

Anti-tear Performance:>15N/mm;

Minimum bending radius:5D(OD≤20mm),6D(OD >20mm);

Environmental Requirements:RoHS & REACH;

Reference Standard:ISO6722、QC/T 1037、ISO19642、LV216、DEKRA-179;


Cable usage environment

The warehouse where the cables are stored shall not have harmful gases that damage the insulation/sheath and corrode metals. It is strictly forbidden to contact with acids, alkalis and mineral oils during normal use, and avoid exposure in the open air or in the exposed environment, and the temperature conditions that do not meet the wire and cable standards. use below;



Remarks: The above product specifications, dimensions and structures may be changed due to technological progress. Similar specifications can be designed and manufactured according to customer needs.


Parameters

Cable specifications

(mm2)

Conductor resistance max (bare copper)

(mQ/m at.20°C)

Rated voltage

 (AC/DC)

 Ref. (A)

 Ref. (mm)

Rated temperature

Color

2.5

7.60

600V/900V  1000V/1500V

30

3.70

-40℃~ 175℃/200℃

orange

4

4.71

600V/900V  1000V/1500V

40

4.50

-40℃~ 175℃/200℃

orange

6

3.14

600V/900V  1000V/1500V

52

5.00

-40℃~ 175℃/200℃

orange

10

1.82

600V/900V  1000V/1500V

75

6.50

-40℃~ 175℃/200℃

orange

16

1.16

600V/900V  1000V/1500V

100

8.30

-40℃~ 175℃/200℃

orange

25

0.743

600V/900V  1000V/1500V

125

10.20

-40℃~ 175℃/200℃

orange

35

0.527

600V/900V  1000V/1500V

165

11.50

-40℃~ 175℃/200℃

orange

50

0.368

600V/900V  1000V/1500V

215

13.50

-40℃~ 175℃/200℃

orange

70

0.259

600V/900V  1000V/1500V

260

15.50

-40℃~ 175℃/200℃

orange

95

0.196

600V/900V  1000V/1500V

320

17.50

-40℃~ 175℃/200℃

orange

120

0.153

600V/900V  1000V/1500V

370

19.50

-40℃~ 175℃/200℃

orange
