Introduction:

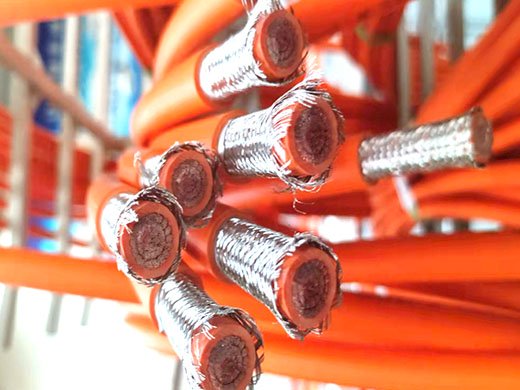

Shielded high-voltage copper cables for hybrid and pure electric vehicles. Temperature class +150℃, XLPE/XLPO insulated
Key Features:

● Conductor:Copper

● Insulation:XLPE/XLPO

● Rated temperature: -40~125/150℃

● Wire Diameter: 2.5~120mm²

Features

Saichuan has a range of high voltage cables for electric vehicles, available in 2.5mm²~120mm² shielded, unshielded or multi-core configurations. Our ev high voltage cables meet all automotive high voltage cable requirements with excellence. Our high-voltage (HV) cables have been tested for reliability in real vehicles on more than 600,000 km of roads.

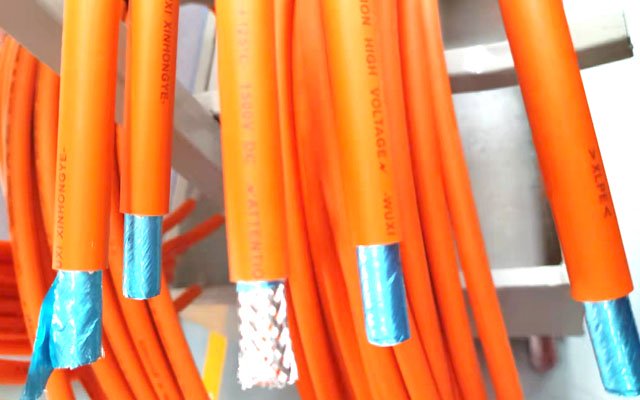

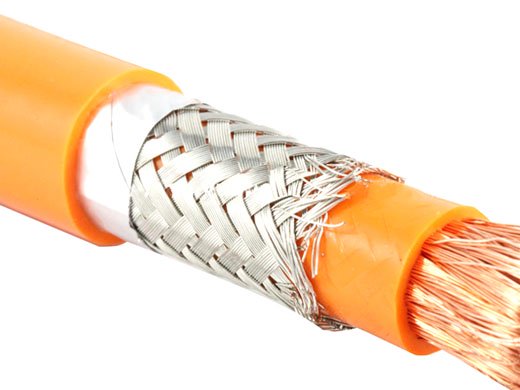

Construction

Conductor:Bare Copper/Tinned Copper

Taping:Polyester tape/aluminum foil

Braid:Tinned copper

Insulation/Sheath:XLPE/XLPO (orange)


Product Features

Rated Temperature(℃):-40℃~125℃/150℃;

Rated Voltage(V):AC/DC:600/900v,1000/1500V ;

Short-term Aging:240h,Comply with QC/T 1037;

Long-term Aging: 3000h,Comply with QC/T 1037;

Flame Test:Flames extinguished at 70s,Keep unburned at least 50mm;

Withstand Voltage:2.1kV/1min. ( 600/900v ) ,3.5kV/1min.( 1000/1500v ) ;

Oil Resistance:IlRM902,IRM903,Gasoline for 20h in each,Variation of OD≤15%,No cracks;

Anti-tear Performance:>20N/mm;

Minimum bending radius:5D(OD≤20mm),6D(OD >20mm);

Environmental Requirements:RoHS & REACH;

Reference Standard:ISO6722、QC/T 1037、ISO19642、LV216、DEKRA-179


Cable usage environment

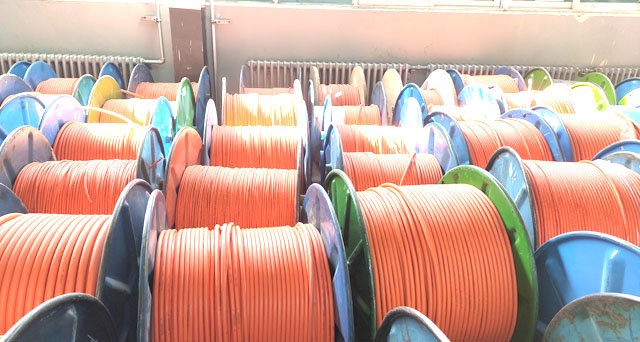

The warehouse where the cables are stored shall not have harmful gases that damage the insulation/sheath and corrode metals. It is strictly forbidden to contact with acids, alkalis and mineral oils during normal use, and avoid exposure in the open air or in the exposed environment, and the temperature conditions that do not meet the wire and cable standards. use below;


Remarks: The above product specifications, dimensions and structures may be changed due to technological progress. Similar specifications can be designed and manufactured according to customer needs.

Parameters


Cable specifications

(mm2)

Maximum conductor resistance

(mQ/m at.20°C)

Rated voltage

(AC/DC)

 Ref. (A)

 Ref. (mm)

Rated temperature

Color

2.5

7.60

600V/900V  1000V/1500V

30

6.0

-40℃~ 125℃/150℃

orange

4

4.71

600V/900V  1000V/1500V

40

6.8

-40℃~ 125℃/150℃

orange

6

3.14

600V/900V  1000V/1500V

52

8.0

-40℃~ 125℃/150℃

orange

10

1.82

600V/900V  1000V/1500V

75

9.5

-40℃~ 125℃/150℃

orange

16

1.16

600V/900V  1000V/1500V

100

11.2

-40℃~ 125℃/150℃

orange

25

0.743

600V/900V  1000V/1500V

125

13.5

-40℃~ 125℃/150℃

orange

35

0.527

600V/900V  1000V/1500V

165

14.5

-40℃~ 125℃/150℃

orange

50

0.368

600V/900V  1000V/1500V

215

17.5

-40℃~ 125℃/150℃

orange

70

0.259

600V/900V  1000V/1500V

260

19.5

-40℃~ 125℃/150℃

orange

95

0.196

600V/900V  1000V/1500V

320

21.8

-40℃~ 125℃/150℃

orange

120

0.153

600V/900V  1000V/1500V

370

24.5

-40℃~ 125℃/150℃

orange
