Output Current: 16A/32A with electromagnetic lock
Rated Volatge: 250V
Protection Grade: IP55
Charging cable length: Customization

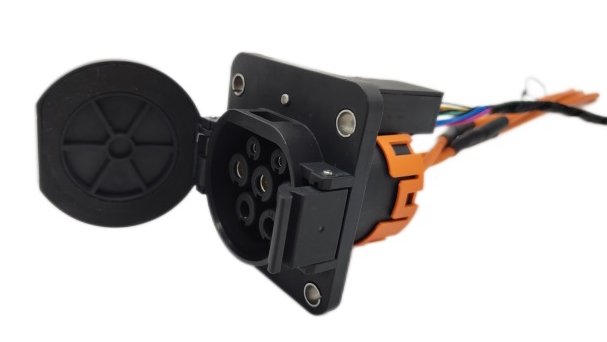

SCZ series AC charging sockets, installed on electric vehicles, can realize AC charging function by cooperating with AC charging guns. The products meet GB/T 20234.2-2015 and comply with RoHS requirements.
1，SCZ series AC non-quick-change charging sockets meet the requirements of GB/T 20234.2-2015.
2，The electronic lock occupies a small space, which is conducive to the layout of the whole vehicle; it can realize the first crimping, and then the threading assembly, the wiring is simple, and the assembly efficiency is high.
3，The product is RoHS compliant.
| Item No. | SC-AC055-16A/32A |
| Plug life | 10000 times |
| Applicable wire diameter | 2.5mm²/4mm²/6mm² |
| Termination method | crimp |
| Rated current | 16A/32A |
| Rated voltage | 250V |
| Insulation resistance | 5000MΩ |
| Withstand voltage | 2500V AC |
| Ambient temperature | -30℃~+50℃ |
| Protection class | Protection level: IP54 after the cover is buckled, IP55 after the gun is inserted |
| Salt spray level | 96H |
| Flange | PA6+30% glass fiber |
| Rubber parts | Silicone Rubber |
| Injection parts | PA6+30% glass fiber |
