Rated current: 1000V
Rated current: MAX 250A

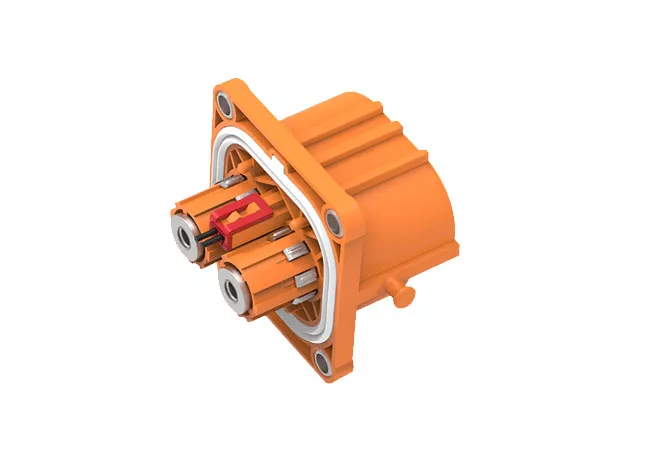

Cross sections: plug 2x35mm² 2x50mm² 2x70mm² socket connection with copper bars
Protection Grade: IP67 IP69K
Application: High-volatge connection between motor conntroller, all-in-one connector,motor, Pack battery, PDU, ect.

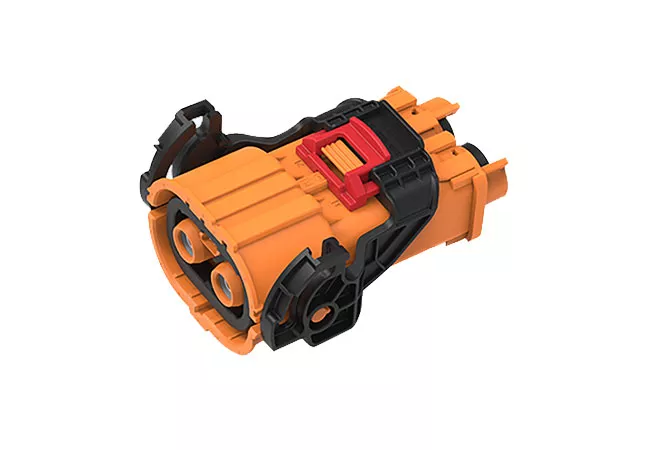

The Saichuan SH2 connector system can achieve 250A at up to 1000V at 85℃. With their high mechanical strength ,excellent vibration and shielding , high efficiency when crimping, IP68 IP69K protection rating, use straight push-pull shrapnel locking structure, with secondary locking function to prevent accidental disconnection caused by incorrect operation. products with compact structure, high current capacity, temperature increase slowly when work Shell made by plastic, which is light weight and more security in using. Orange color act as warming.
|Electrical Performance||Rated voltage||1000V|
|Mechanical Properties||Pins||2 pins|
|Cross sections||2x35mm² 2x50mm² 2x70mm²|
|Vibration class acc. To||QC/T 1067.1-2017 V2|
|Environmental Performance||Operating temperature||-40℃~140℃|
|Protection Grade||IP68 IP69K|
